TL-SG3428X poskytuje 24x 10/100/1000Mbit/s LAN portů. Navíc jsou k dispozici i čtyři 10G SFP+ sloty. Ke správě a monitoringu je možné využít běžný přístup přes webové rozhraní a protokoly např. CLI, SNMP, RMO, ale i centralizovaný cloud management a softwarový controler. Podporován je i hardwarový controller Omada (OC200/OC300).
|

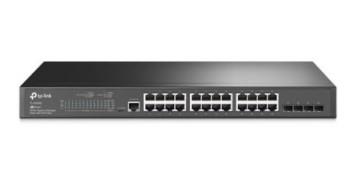

TL-SG3428X
|
Switch nabitý funkcemi
|
Switch poskytuje vysoce výkonné směrování na bázi IP, MAC, TCP nebo UDP. Vše v kombinaci s pokročilými bezpečnostními strategiemi (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication...). Se všemi těmito pokročilými funkcemi je gigabitový L2+ JetStream switch ideální volbou pro řešení sítí malých a středních podniků.
|
Obsah balení
|
Zařízení
|
Napájecí kabel
|
Úchyty do 19" racku
|
Interface • 24× 10/100/1000 Mbps RJ45 Ports
|
• 4× Gigabit SFP Slots
|
• 1× RJ45 Console Port
|
• 1× Micro-USB Console Port
|
Fan Quantity Fanless
|
Power Supply 100-240 V AC~50/60 Hz
|
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
|
Mounting Rack Mountable
|
Max Power Consumption 19.22 W (110 V/60 Hz)
|
Max Heat Dissipation 65.58 BTU/h (110 V/60 Hz)
|
PERFORMANCE
|
Switching Capacity 56 Gbps
|
Packet Forwarding Rate 41.66 Mpps
|
MAC Address Table 8K
|
Jumbo Frame 9 KB
|
SOFTWARE FEATURES
|
Quality of Service • 8 priority queues
|
• 802.1p CoS/DSCP priority
|
• Queue scheduling
|
- SP (Strict Priority)
|
- WRR (Weighted Round Robin)
|
- SP+WRR
|
• Bandwidth Control
|
- Port/Flow based Rating Limiting
|
• Smoother Performance
|
• Action for Flows
|
- Mirror (to supported interface)
|
- Redirect (to supported interface)
|
- Rate Limit
|
- QoS Remark
|
L2 and L2+ Features • Link Aggregation
|
- Static link aggregation
|
- 802.3ad LACP
|
- Up to 8 aggregation groups and up to 8 ports per group
|
• Spanning Tree Protocol
|
- 802.1d STP
|
- 802.1w RSTP
|
- 802.1s MSTP
|
- STP Security:
|
TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
|
• Loopback Detection
|
- Port-based
|
- VLAN based
|
• Flow Control
|
- 802.3x Flow Control
|
- HOL Blocking Prevention
|
• Mirroring
|
- Port Mirroring
|
- CPU Mirroring
|
- One-to-One
|
- Many-to-One
|
- Tx/Rx/Both
|
L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups
|
• IGMP Snooping
|
- IGMP v1/v2/v3 Snooping
|
- Fast Leave
|
- IGMP Snooping Querier
|
- IGMP Authentication
|
• IGMP Authentication
|
• MVR
|
• MLD Snooping
|
- MLD v1/v2 Snooping
|
- Fast Leave
|
- MLD Snooping Querier
|
- Static Group Config
|
- Limited IP Multicast
|
• Multicast Filtering:
|
256 profiles and 16 entries per profile
|
VLAN • VLAN Group
|
- Max 4K VLAN Groups
|
• 802.1q Tagged VLAN
|
• MAC VLAN:
|
12 Entries
|
• Protocol VLAN:
|
Protocol Template 16, Protocol VLAN 16
|
• GVRP
|
• VLAN VPN (QinQ)
|
- Port-Based QinQ
|
- Selective QinQ
|
• Voice VLAN
|
Access Control List • Time-based ACL
|
• MAC ACL
|
- Source MAC
|
- Destination MAC
|
- VLAN ID
|
- User Priority
|
- Ether Type
|
• IP ACL
|
- Source IP
|
- Destination IP
|
- Fragment
|
- IP Protocol
|
- TCP Flag
|
- TCP/UDP Port
|
- DSCP/IP TOS
|
- User Priority
|
• Combined ACL
|
• Packet Content ACL
|
• IPv6 ACL
|
• Policy
|
- Mirroring
|
- Redirect
|
- Rate Limit
|
- QoS Remark
|
• ACL apply to Port/VLAN
|
Security • IP-MAC-Port Binding
|
- DHCP Snooping
|
- ARP Inspection
|
- IPv4 Source Guard
|
• IPv6-MAC-Port Binding
|
- DHCPv6 Snooping
|
- ND Detection
|
- IPv6 Source Guard
|
• DoS Defend
|
• Static/Dynamic Port Security
|
- Up to 64 MAC addresses per port
|
• Broadcast/Multicast/Unicast Storm Control
|
- kbps/ratio/pps control mode
|
• IP/Port/MAC based access control
|
• 802.1X
|
- Port based authentication
|
- Mac based authentication
|
- VLAN Assignment
|
- MAB
|
- Guest VLAN
|
- Support Radius authentication and
|
accountability
|
• AAA (including TACACS+)
|
• Port Isolation
|
• Secure web management through HTTPS with SSLv3/TLS 1.2
|
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
|
IPv6 • IPv6 Dual IPv4/IPv6
|
• Multicast Listener Discovery (MLD) Snooping
|
• IPv6 ACL
|
• IPv6 Interface
|
• Static IPv6 Routing
|
• IPv6 neighbor discovery (ND)
|
• Path maximum transmission unit (MTU) discovery
|
• Internet Control Message Protocol (ICMP) version 6
|
• TCPv6/UDPv6
|
• IPv6 applications
|
- DHCPv6 Client
|
- Ping6
|
- Tracert6
|
- Telnet (v6)
|
- IPv6 SNMP
|
- IPv6 SSH
|
- IPv6 SSL
|
- Http/Https
|
- IPv6 TFTP
|
L3 Features • 16 IPv4/IPv6 Interfaces
|
• Static Routing
|
- 48 static routes
|
• Static ARP
|
• 316 ARP Entries
|
• Proxy ARP
|
• Gratuitous ARP
|
• DHCP Server
|
• DHCP Relay
|
• DHCP L2 Relay
|
Management • Web-based GUI
|
• Command Line Interface (CLI) through console port, telnet
|
• SNMPv1/v2c/v3
|
- Trap/Inform
|
- RMON (1, 2, 3, 9 groups)
|
• SDM Template
|
• DHCP/BOOTP Client
|
• 802.1ab LLDP/LLDP-MED
|
• DHCP AutoInstall
|
• Dual Image, Dual Configuration
|
• CPU Monitoring
|
• Cable Diagnostics
|
• EEE
|
• Password Recovery
|
• SNTP
|
• System Log
|
Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
|
• Automatic Device Discovery
|
• Batch Configuration
|
• Batch Firmware Upgrading
|
• Intelligent Network Monitoring
|
• Abnormal Event Warnings
|
• Unified Configuration
|
• Reboot Schedule
|
• ZTP (Zero-Touch Provisioning)*
|
OTHERS
|
Certification CE, FCC, RoHS
|
Package Contents • TL-SG3428 Switch
|
• Power Cord
|
• Quick Installation Guide
|
• Rackmount Kit
|
• Rubber Feet
|
Environment • Operating Temperature:
|
0–45 ? (32–113 ?);
|
• Storage Temperature:
|
-40–70 ? (-40–158 ?)
|
• Operating Humidity:
|
10–90% RH non-condensing
|
• Storage Humidity:
|
5–90% RH non-condensing
|
