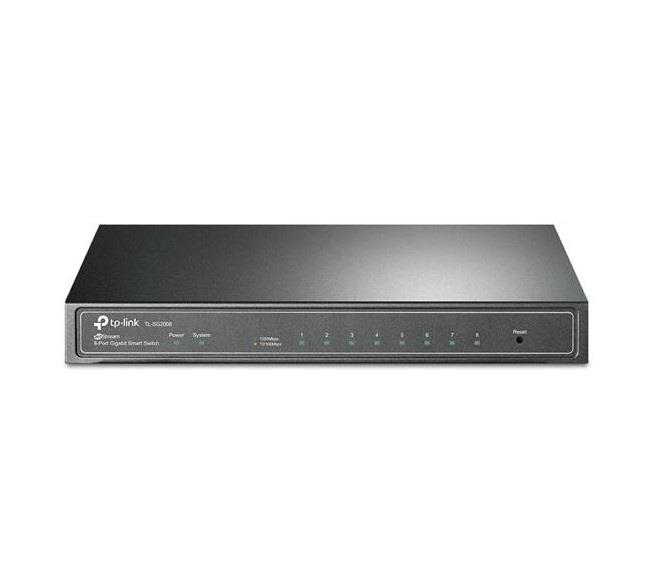

TL-SG2008
|
|
JetStream 8-Port Gigabit Smart Switch
|
|
Plne gigabitové porty:
|
8 gigabitových portov RJ45 poskytuje vysokorýchlostné pripojenie. 8. port môže prijímať napájanie zo zdroja kompatibilného s PoE (Power Sourcing Equipment, PSE).
|
|
Integrované do platformy Omada SDN:
|
funkcia ZŤP (Zero-Touch Provisioning) *, centralizovaná cloudové správa a inteligentné monitorovanie.
|
|
Centralizovaná správa:
|
cloudový prístup a aplikácie Omada pre maximálne pohodlie a jednoduchú správu
|
|
Robustné stratégie zabezpečenia:
|
802.1Q VLAN, ACL, zabezpečenie portov, Storm Control a ďalšie.
|
|
Optimalizovaný prenos hlasu a videa v aplikáciách:
|
L2 / L3 / L4 QoS a funkcie IGMP Snooping.
|
|
Univerzálna správa:
|
riadené režimy WEB / CLI, SNMP a RMON poskytujú bohaté možnosti správy.
|
|
HARDWARE FEATURES
|
|
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
|
|
Interface 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
|
|
Network Media • 10BASE-T:
|
UTP category 3, 4, 5 cable (maximum 100m)
|
|
• 100BASE-TX/1000Base-T:
|
UTP category 5, 5e or above cable (maximum 100m)
|
|
Fan Quantity Fanless
|
|
Power Supply • 12 VDC/1 A External Adapter or
|
|
• Obtain Power from PoE Source
|
|
Power Consumption 6.4 W (220 V/50 Hz)
|
|
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
|
|
PERFORMANCE
|
|
Bandwidth/Backplane 16 Gbps
|
|
Packet Forwarding Rate 11.9 Mpps
|
|
MAC Address Table 8K
|
|
Jumbo Frame 9 KB
|
|
SOFTWARE FEATURES
|
|
Quality of Service • 802.1p CoS/DSCP priority
|
|
• 8 priority queues
|
|
• Priority Schedule Mode
|
|
- SP (Strict Priority)
|
|
- WRR (Weighted Round Robin)
|
|
• Queue Weight Config
|
|
• Bandwidth Control
|
|
- Port/Flow based Rating Limit
|
|
• Smoother Performance
|
|
• Storm Control
|
|
- Multiple Control Modes(kbps/ratio)
|
|
- Broadcast/Multicast/Unknown-Unicast Control
|
|
L2 and L2+ Features • 16 IP Interfaces
|
|
- Support IPv4/IPv6 Interface
|
|
• Static Routing
|
|
- 32 IPv4/IPv6 Static Routes
|
|
• DHCP Server
|
|
• DHCP Relay
|
|
- DHCP Interface Relay
|
|
- DHCP VLAN Relay
|
|
• DHCP L2 Relay
|
|
• Static ARP
|
|
• Proxy ARP
|
|
• Gratuitous ARP
|
|
• Link Aggregation
|
|
- Static link aggregation
|
|
- 802.3ad LACP
|
|
- Up to 8 aggregation groups and up to 8 ports
|
|
per group
|
|
• Spanning Tree Protocol
|
|
- 802.1D STP
|
|
- 802.1w RSTP
|
|
- 802.1s MSTP
|
|
- STP Security:
|
TC Protect, BPDU Filter/Protect,
|
|
Root Protect
|
|
• Loopback Detection
|
|
• Flow Control
|
|
- 802.3x Flow Control
|
|
• Mirroring
|
|
- Port Mirroring
|
|
- CPU Mirroring
|
|
- One-to-One
|
|
- Many-to-One
|
|
- Flow-Based
|
|
- Ingress/Egress/Both
|
|
• Device Link Detect Protocol (DLDP)
|
|
• 802.1ab LLDP/ LLDP-MED
|
|
VLAN • VLAN Group
|
|
- Max. 4K VLAN Groups
|
|
• 802.1Q tag VLAN
|
|
• MAC VLAN
|
|
• Protocol VLAN
|
|
• GVRP
|
|
• Voice VLAN
|
|
Access Control List • Support up to 230 entries
|
|
• Time-Range
|
|
- Time Slice
|
|
- Week Time-Range
|
|
- Absolute Time-Range
|
|
- Holiday
|
|
• Time-based ACL
|
|
• MAC ACL
|
|
- Source MAC
|
|
- Destination MAC
|
|
- VLAN ID
|
|
- User Priority
|
|
- Ether Type
|
|
• IP ACL
|
|
- Source IP
|
|
- Destination IP
|
|
- IP Protocol
|
|
- TCP Flag
|
|
- TCP/UDP Source Port
|
|
- TCP/UDP Destination Port
|
|
- DSCP/IP TOS
|
|
• IPv6 ACL
|
|
• Combined ACL
|
|
• Rule Operation
|
|
- Permit/Deny
|
|
• Policy Action
|
|
- Mirror
|
|
- Rate Limit
|
|
- Redirect
|
|
- QoS Remark
|
|
• ACL Rules Binding
|
|
- Port Binding
|
|
- VLAN Binding
|
|
• Actions for flows
|
|
- Mirror (to supported interface)
|
|
- Redirect (to supported interface)
|
|
- Rate Limit
|
|
- QoS Remark
|
|
Security • AAA
|
|
• 802.1X
|
|
- Port based authentication
|
|
- MAC (Host) based authentication
|
|
- Authentication Method includes PAP/EAP-MD5
|
|
- MAB
|
|
- Guest VLAN
|
|
- Support Radius authentication and
|
|
accountability
|
|
• IP/IPv6-MAC Binding
|
|
- 512 Binding Entries
|
|
- DHCP Snooping
|
|
- DHCPv6 Snooping
|
|
- ARP Inspection
|
|
- ND Detection
|
|
• IP Source Guard
|
|
- 253 Entries
|
|
- Source IP+Source MAC
|
|
• IPv6 Source Guard
|
|
- 183 Entries
|
|
- Source IPv6 Address+Source MAC
|
|
• DoS Defend
|
|
• Static/Dynamic/Permanent Port Security
|
|
- Up to 64 MAC addresses per port
|
|
• Broadcast/Multicast/Unicast Storm Control
|
|
- kbps/ratio control mode
|
|
• Port Isolation
|
|
• Secure web management through HTTPS with
|
|
SSLv3/TLS 1.2
|
|
• Secure Command Line Interface (CLI)
|
|
management with SSHv1/SSHv2
|
|
• IP/Port/MAC based access control
|
|
Management • Web-based GUI
|
|
• Command Line Interface (CLI) through telnet
|
|
• SNMPv1/v2c/v3
|
|
• SNMP Trap/Inform
|
|
• RMON (1,2,3,9 groups)
|
|
• SDM Template
|
|
• DHCP/BOOTP Client
|
|
• Dual Image, Dual Configuration
|
|
• CPU Monitoring
|
|
• Cable Diagnostics
|
|
• EEE
|
|
• SNTP
|
|
• System Log
|
|
OTHERS
|
|
Certification CE, FCC, RoHS
|
|
Package Contents • TL-SG2008
|
|
• Power Adapter
|
|
• Installation Guide
|
|
• Rubber Feet
|
|
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
|
|
Environment • Operating Temperature:
|
0?~40? (32?~104?);
|
|
• Storage Temperature:
|
-40?~70? (-40?~158?)
|
|
• Operating Humidity:
|
10%~90% non-condensing
|
|
• Storage Humidity:
|
5%~90% non-condensing
|
