PŘEHLED
|
*Konstrukce upravená pro snadnou montáž umožňuje instalaci do jakéhokoli EU typu elektroinstalační krabice pod/na omítku
|
*Kompaktní, nízkoprofilový, diskrétní design se hodí k jakémukoli interiérovému stylu
|
*Volně dostupný Auranet Controller Software umožňuje administrátorům snadno spravovat stovky EAP
|
*Podpora napájení přes ethernet (PoE; 802.3af) pro pohodlnou a cenově dostupnou instalaci
|
*Podniková třída zabezpečení Wi-Fi pomáhá snížit bezpečnostní hrozby sítě
|
*Captive portál poskytuje jednu pohodlnou metodu ověření pro hosty Wi-Fi sítě
|
*Podpora správy VLAN pro rozšířený síťový management
|
|
TECHNICKÁ SPECIFIKACE
|
*Interface
|
|
10/100Mbps Ethernet (RJ-45) Port
|
*Button
|
|
LED/Wi-Fi Button?RESET
|
*Power Supply
|
|
PoE(IEEE 802.3af)
|
*Power Consumption
|
|
2.8 W
|
*Dimensions ( W x D x H )
|
|
86.8*86.8*30.2 mm
|
*Antenna Type
|
|
Internal 2*1.8dBi Omni
|
*Mounting
|
|
Wall Plate Mounting
|
*Watch Dog
|
|
Yes
|
*Wireless Standards
|
|
IEEE 802.11n/g/b/a
|
*Frequency
|
|
2.4GHz
|
*Signal Rate
|
|
11n:
|
Up to 300Mbps(dynamic)
|
|
11g:
|
Up to 54Mbps(dynamic)
|
|
11b:
|
Up to 11Mbps(dynamic)
|
*Transmit Power
|
|
<15dBm(2.4GHz)
|
*Wireless Functions
|
|
Multiple SSIDs(Up to 8 SSIDs)
|
|
Enable/Disable Wireless Radio
|
|
Automatic Channel Assignment
|
|
Transmit Power Control (Adjust Transmit Power on dBm)
|
|
QoS(WMM)
|
|
Load Balance
|
|
Rate Limit
|
|
Reboot Schedule
|
|
Wireless Schedule
|
|
Wireless Statistics based on SSID/AP/Client
|
*Wireless Security
|
|
Captive Portal Authentication
|
|
Access Control
|
|
Wireless Mac Address Filtering
|
|
Wireless Isolation Between Clients
|
|
SSID to VLAN Mapping
|
|
Rogue AP Detection
|
|
802.1X Support
|
|
64/128/152-bit WEP / WPA / WPA2-Enterprise,
|
|
WPA-PSK / WPA2-PSK
|
*EAP Controller Software
|
|
Yes
|
*Email Alerts
|
|
Yes
|
*LED ON/OFF Control
|
|
Yes
|
*Management MAC Access Control
|
|
Yes
|
*SNMP
|
|
v1,v2c
|
*System Logging Local/Remote Syslog
|
|
Local/Remote Syslog
|
*Telnet
|
|
Yes
|
*Web-based Management
|
|
HTTP/HTTPS
|
*L3 Management
|
|
Yes
|
*Multi-site Management
|
|
Yes
|
*Management VLAN
|
|
Yes
|
*Certification
|
|
CE, RoHS
|
*Package Contents
|
|

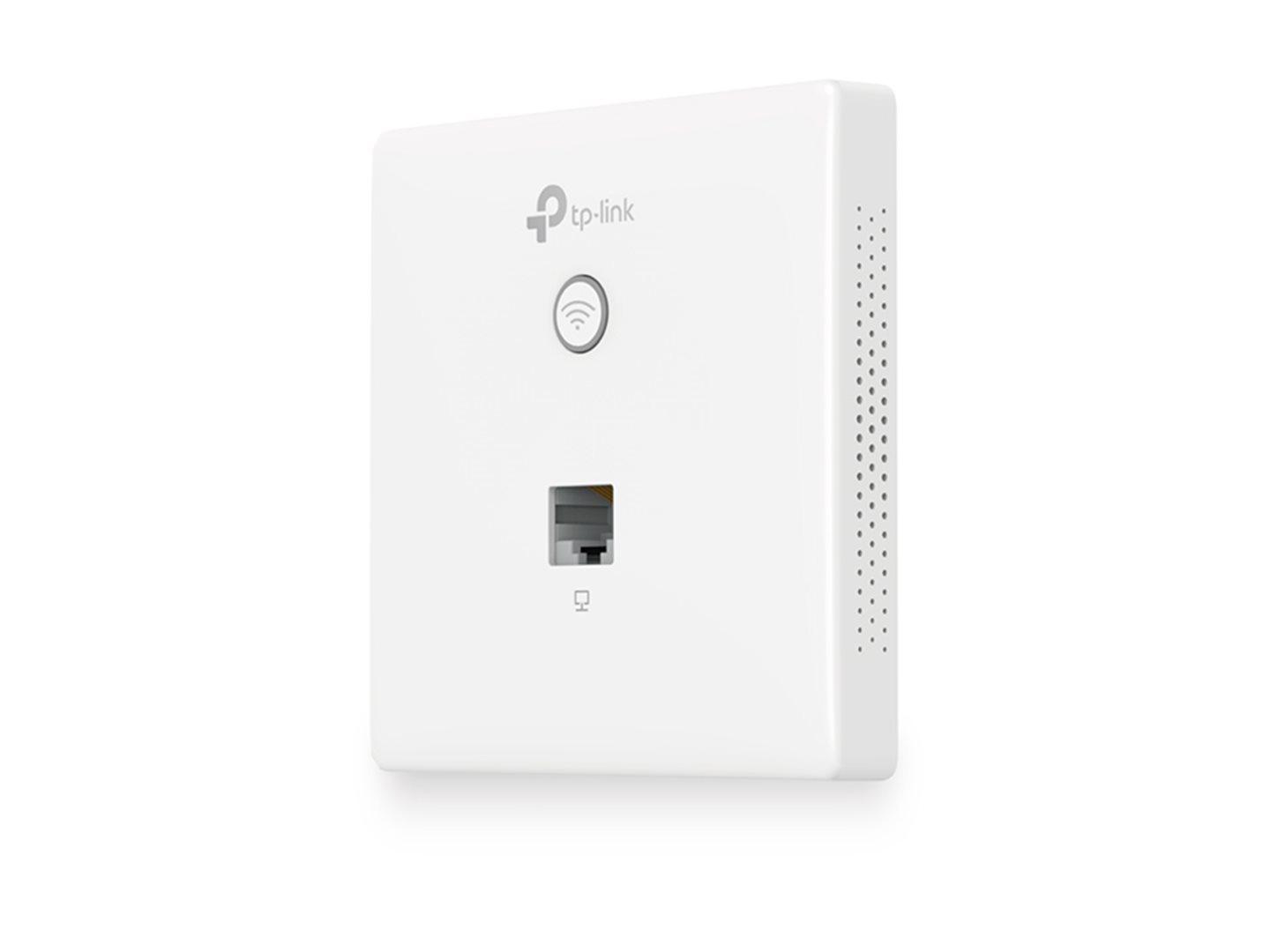

300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
|
|
Installation Guide
|
|
Mounting Screw
|
*System Requirements
|
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
|
*Environment
|
|
Operating Temperature:
|
0?~40?
|
|
Storage Temperature:
|
-40?~70?
|
|
Operating Humidity:
|
10%~90% non-condensing
|
|
Storage Humidity:
|
5%~90% non-condensing
|
