KAZE-FLEX 92mm PWM RGB
|
|
Model number:
|
KF9225FD23R-P / JAN: 4571225057484
|
|
92mm case fan "KAZE FLEX" RGB model
|
|
- 4-pin RGB compatible version of 92mm case fan "KAZE FLEX" that uses high-density sealed FDB (Sealed Precision FDB) with long life
|
|
Sealed Precision FDB
|
|
· Highly oil-retaining ability that suppresses volatilization and leakage due to the completely sealed bearing structure without the oil-filled cap.
|
|
· The fluid bearing structure that stores oil in the space between the rotating shaft and the bearing provides a high lubrication effect and quietness. The bearing uses a high-strength and high-durability high alloy to achieve low friction and long life.
|
|
· Uses high-quality lubricating oil that can withstand high temperatures of 200-250C
|
|
Shock absorbing rubber pad
|
|
-Excellent vibration absorption and fan stability.
|
|
Extender cable specifications
|
|
· The fan cable is usually 30 cm. By extension cable, it can be extended up to 50Cm
|
|
(RGB cable will be impossible extended 50cm)
|
|
Accessories
|
|
-Fan extender cable, mounting screws
|
|
Package
|
|
· 100 (W) × 170 (H) × 28 ( D) mm · 135 g
|
|

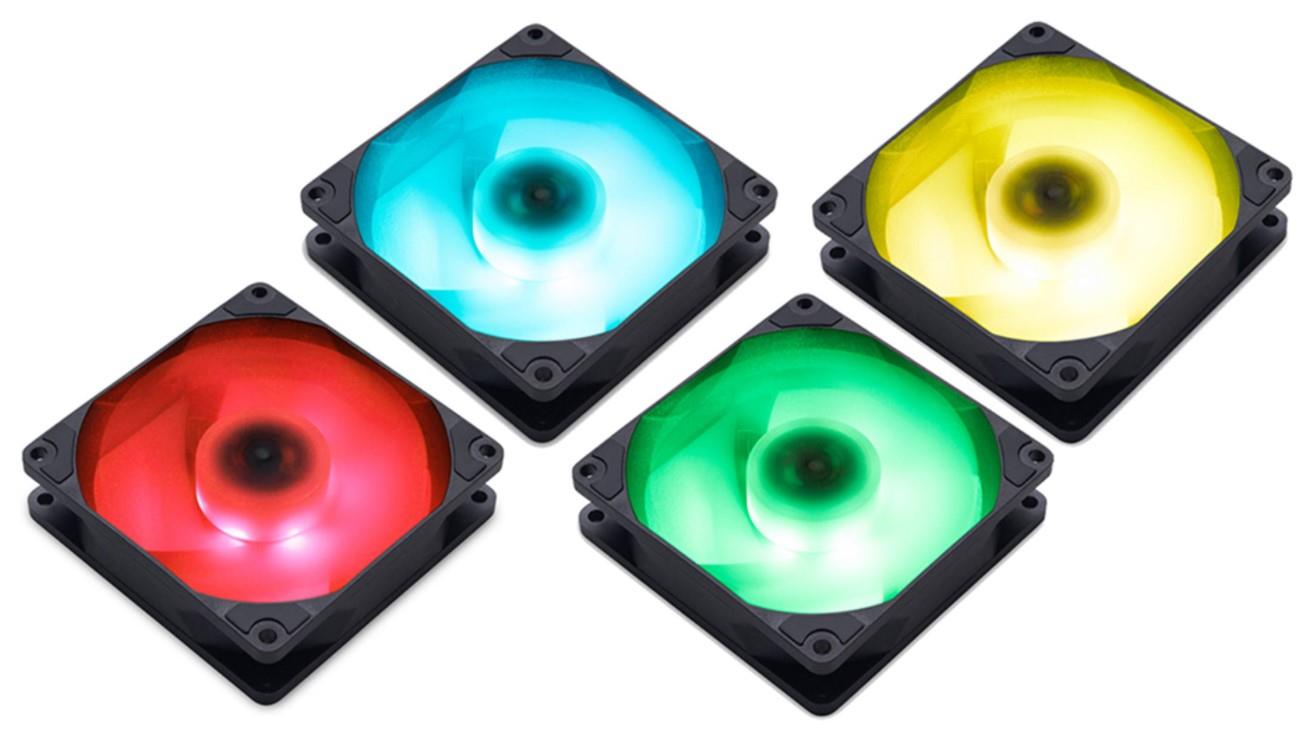

92mm case fan "KAZE FLEX" 4-pin RGB compatible version
|
|
Variable PWM / 2300 rpm
|
|
Compatible with motherboard manufacturers RGB certified
|
|
ASUS AURA SYNC, ASRock RGB LED, MSI Mystic Light Sync, GIGABYTE RGB Fusion
|
|
Daisy chain specification
|
|
4-pin RGB connector is a branch cable (daisy chain) specification that can be expanded.
|
* Since it can be expanded with a branch cable, it does not consume the 4-pin RGB header on the motherboard.
|
|
Sealed Precision FDB
|
|
Adopts a completely sealed bearing structure that eliminates the oil-sealed cap.
|
|
This realizes a high holding capacity that minimizes oil volatilization and leakage
|
|
Oil in the space between the rotating shaft and the bearing Highly effective lubrication and quietness are achieved by the fluid bearing structure that stores water. By using a
|
|
high alloy with high strength and durability in the bearing part, low friction and long life are realized.
|
|
Uses oil.
|
|
Shock absorption rubber pad
|
|
By adopting "shock absorption rubber pad", it has excellent vibration absorption and fan stability.
|
|
Long life
|
|
MTBF 120,000 hours long life under 25 ? environment
|
|
Extender cable specifications The
|
|
fan cable is normally 30 cm and can be extended to 50 cm with an extension cable
|
|
(RGB cable cannot be extended)
|
|
Accessories:
|
Extender cable for fan, mounting screw
|
|
4-pin PWM connection automatically changes fan speed
|
|
92 x 92 x 26 mm thick, without ribs
|
|
Package size / weight:
|
100 (W) × 170 (H) × 28 (D) mm · 135 g
|
|
RoHS compliant eco-friendly product
|
|
Model number KF9225FD23R-P
|
|
JAN 4571225057484
|
|
size 92 x 92 x 26 mm thick
|
|
Speed ??(variable PWM) 300 (± 200) ~ 2300 rpm (± 10%)
|
|
Noise / air volume 7.3 ~ 28.83 dBA / 6.75 ~ 48.88 CFM
|
|
Static pressure 00.8 ~ 2.03 mmH2O / 7.85 ~ 19.91 Pa
|
|
Rated current 0.2 A / LED 0.12 A
|
|
Drive voltage 12 VDC
|
|
rib None
|
|
weight 95 g
|
|
Fan connection PWM 4 pin
|
|
cable length Fan cable 30cm (extendable to 50cm), RGB cable 50cm
|
|
bearing Sealed Precision FDB
|
|
MTBF 120,000 hours (25 ?)
|
