Details
|
|

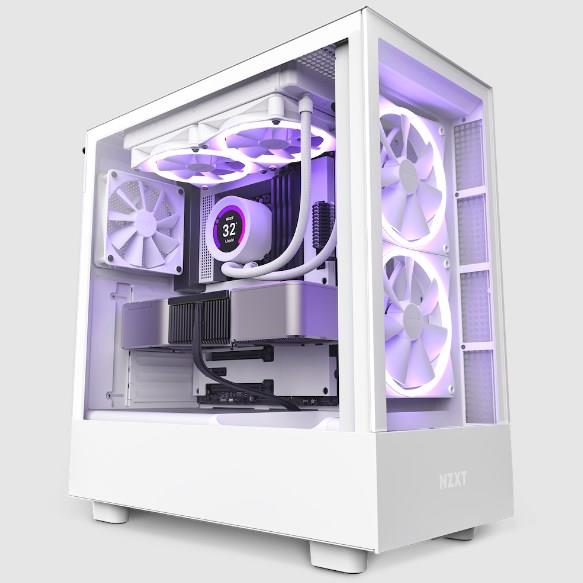

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
|
|
Pre-installed fan on bottom inside panel is angled to cool GPU
|
|
Tempered glass front panel and built-in RGB controller
|
|
Perforated top panel provides optimal ventilation
|
|
Intuitive cable management system with wide channels, hooks, & straps
|
|
Tool-less access to front & side panels
|
|
Front panel supports 2 x 140mm fans or 280mm radiator
|
|
Top panel supports up to 2 x 120mm fans or 240mm radiator
|
|
Includes two pre-installed F140 RGB fans & one F120Q fan
|
|
Inside the Box
|
|
H5 Elite Case1
|
|
Front I/O split cables1
|
|
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1
|
|
Key Specs
|
|
Motherboard Support:
|
Mini-ITX, Micro-ATX, ATX
|
|
Enclosure Type:
|
Mid-Tower
|
|
Case Material:
|
SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
|
|
Dimensions
|
|
Height:
|
464 mm (With Feet)
|
|
Width:
|
227 mm
|
|
Depth:
|
446 mm
|
|
Weight:
|
8.1 kg
|
|
Compatibility & Clearance
|
|
Max CPU Cooler Clearance:
|
Up to 165mm
|
|
Max GPU Clearance:
|
Up to 365mm
|
|
Front Radiator Clearance:
|
45mm
|
|
Cable Management:
|
Up to 23mm
|
|
Front I/O Ports
|
|
USB 3.2 Gen 1 Type-A:
|
1
|
|
USB 3.2 Gen 2 Type-C:
|
1
|
|
Headset Audio Jack:
|
1
|
|
Included Accessories
|
|
Installation screws:
|
1
|
|
Cable ties:
|
10
|
|
RGB Lighting Controller:
|
NZXT RGB Connector: 3 (Support up to 120 LEDs)
|
|
Expansion Slots
|
|
Standard:
|
7
|
|
Drive Bays
|
|
2.5":
|
1+1
|
|
3.5":
|
1
|
|
Fan Support
|
|
Front:
|
2 x F Series RGB 140mm (Case Version) included
|
|
Top:
|
2 x 120mm
|
|
Rear:
|
1 x 120mm
|
|
Bottom:
|
1 x F Series Quiet 120mm (Case Version) included
|
|
Filters:
|
All Air Intakes
|
|
Radiator Support
|
|
Front:
|
Up to 280mm
|
|
Top:
|
Up to 240mm
|
|
Rear:
|
Up to 120mm
|
|
Fan Specs
|
|
Model:
|
F140 RGB Fan
|
|
Speed:
|
500 - 1800 RPM
|
|
Airflow:
|
24.85 - 89.48 CFM
|
|
Static Pressure:
|
0.94 - 3.39 mm-H2O
|
|
Noise:
|
20 - 32.5 dBA
|
|
Fan Connector:
|
4-pin
|
|
Fan Specs
|
|
Model:
|
F120Q Airflow Fan (Case Version)
|
|
Speed:
|
1200 ± 240 RPM
|
|
Airflow:
|
62.18 CFM
|
|
Static Pressure:
|
1.05 mm-H2O
|
|
Noise:
|
25.1 dBA
|
|
Fan Connector:
|
3-pin
|
|
