Product Collection 12th Generation Intel® Core™ i9 Processors
|
|
Code Name Alder Lake
|
|
Vertical Segment Desktop
|
|

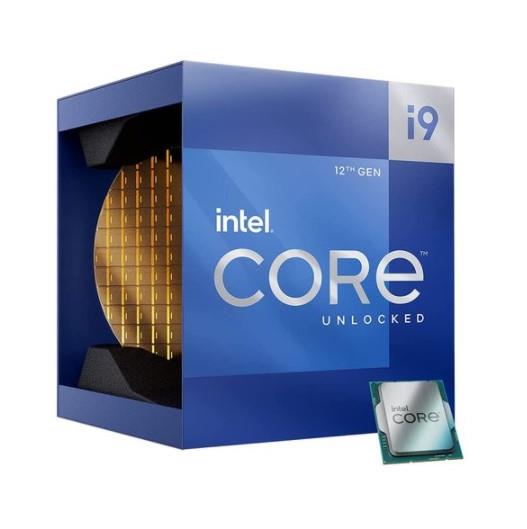

Processor Number i9-12900K
|
|
CPU Specifications
|
|
Total Cores 16
|
|
# of Performance-cores 8
|
|
# of Efficient-cores 8
|
|
Total Threads 24
|
|
Max Turbo Frequency 5.20 GHz
|
|
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.20 GHz
|
|
Performance-core Max Turbo Frequency 5.10 GHz
|
|
Efficient-core Max Turbo Frequency 3.90 GHz
|
|
Performance-core Base Frequency 3.20 GHz
|
|
Efficient-core Base Frequency 2.40 GHz
|
|
|
|
Cache
|
|
30 MB Intel® Smart Cache
|
|
Total L2 Cache 14 MB
|
|
Processor Base Power 125 W
|
|
Maximum Turbo Power 241 W
|
|
Memory Specifications
|
|
Max Memory Size (dependent on memory type) 128 GB
|
|
Memory Types
|
|
Up to DDR5 4800 MT/s
|
|
Up to DDR4 3200 MT/s
|
|
Max # of Memory Channels 2
|
|
Max Memory Bandwidth 76.8 GB/s
|
|
Processor Graphics ‡ Intel® UHD Graphics 770
|
|
Graphics Base Frequency 300 MHz
|
|
Graphics Max Dynamic Frequency 1.55 GHz
|
|
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
|
|
Execution Units 32
|
|
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
|
|
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
|
|
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
|
|
DirectX* Support 12
|
|
OpenGL* Support 4.5
|
|
Multi-Format Codec Engines 2
|
|
Intel® Quick Sync Video Yes
|
|
Intel® Clear Video HD Technology Yes
|
|
# of Displays Supported ‡ 4
|
