KEY FEATURE
|
|
Ultra Durable
|
|
Main Japanese capacitors
|
|
Enhanced thermal solution
|
|
120mm smart hydraulic bearing (HYB) fan
|
|
OVP/OPP/SCP/UVP/OCP/OTP protection
|
|
Support PCIe Gen 5.0 graphics card
|
|
High-quality native 16-pin cable supports 600W output
|
|
80 PLUS Gold certified
|
|
Fully modular design
|
|
Compact design
|
|
10 years warranty (Adjusted according to different regions)
|
|

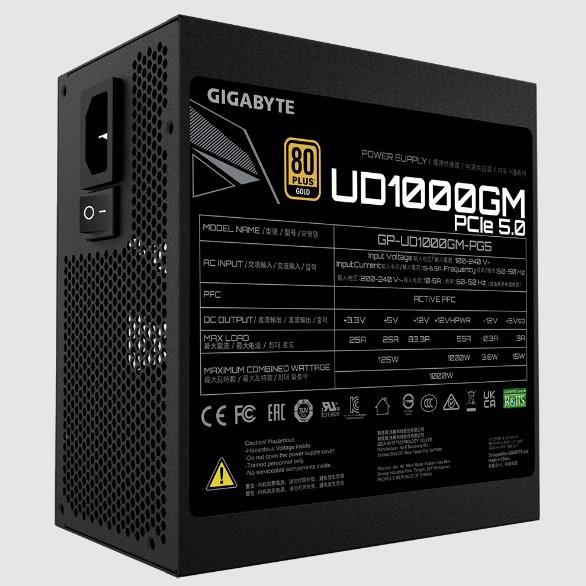

UD1000GM PG5 rev. 2.0
|
|
Key Features Specification Support News & Awards Gallery Buy
|
|
Model
|
|
GP-UD1000GM PG5
|
|
Type
|
|
Intel Form Factor ATX 12V
|
|
PFC
|
|
Active PFC (>0.9 typical)
|
|
Input Voltage
|
|
100-240 Vac (full range)
|
|
Input Current
|
|
15-6.5A
|
|
Input Frequency
|
|
60-50 Hz
|
|
Output Capacity
|
|
1000W
|
|
Dimension
|
|
150 x 140 x 86 mm
|
|
Fan Type
|
|
120mm Hydraulic Bearing(HYB)fan
|
|
80 PLUS
|
|
Gold
|
|
Efficiency
|
|
90% at typical load
|
|
MTBF
|
|
>100,000 hours
|
|
Protection
|
|
OVP/OPP/SCP/UVP/OCP/OTP
|
|
Power Good Signal
|
|
100-150ms
|
|
Hold Up Time
|
|
>16ms
|
|
Cable Type
|
|
Flat, All black
|
|
Connectors
|
|
ATX/MB 20+4 Pin x 1 :
|
610mm*1
|
|
CPU/EPS 4+4 Pin x 2 :
|
600mm+200mm*1
|
|
PCI-e 16 Pin x 1:
|
700mm*1
|
|
PCI-e 6+2 Pin x 4 :
|
600mm+150mm*2
|
|
SATA x 8 :
|
|
600mm+150mm+150mm+150mm*2
|
|
4 Pin Peripheral x 3+4-Pin floppy x 1 :
|
500mm+120mm+120mm+150mm*1
|
