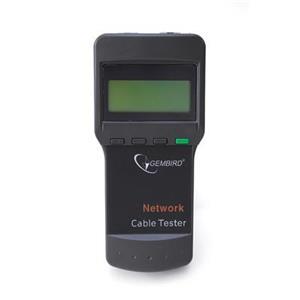

Popis produktu:
|
|
Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables:
|
open circuit, short circuit, jumper wire, reverse connection
|
|
Measures the cable length and determines the distance to the open circuit
|
|
The length measurement accuracy up to 97% via built-in calibration
|
|
Self-checks and automatically compensates any change in battery capacity or ambient temperature
|
|
Up to 50 working hours of the battery life
|
|
Specifikace
|
|
Power supply:
|
4 x 1.5 V DC AA batteries (not included)
|
|
Power consumption:
|
up to 16 mA
|
|
Display:
|
4 x 16 character LCD screen, 61.6 x 25.2 mm
|
|
Designed for:
|
STP/UTP twin twisted, coaxial & telephone cable
|
|
Working ambient temperature:
|
-10 ... + 60°C
|
|
Tester port:
|
tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
|
|
Max cable length:
|
up to 1350 m
|
|
Calibration accuracy:
|
3% (+/- 0.5 m)
|
|
Calibration cable length:
|
> 5 m
|
|
Cable problems detected:
|
open circuit, short circuit, reverse connection, crossover or cross-talk interference
|
|
Automatic shut-down:
|
after 30 minutes
|
|
Dimensions:
|
180 x 80 x 40 mm
|
|
Net weight:
|
0.25 kg
|
