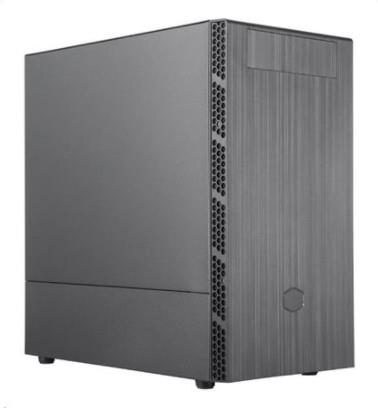

Each element of the MasterBox MB400L was created from an elegant palette. With a brushed finish, subtle hue, and the minimalistic Cooler Master hexagon, this Micro-ATX PC case decorates the gaming setup and workspace while also being able to house the latest hardware.
|
|
High style embellishes high upgradeability with front, top, and rear ventilation, offering additional mounting options for upgrading cooling components in the future. If an optional RGB or ARGB fan is installed behind the front panel, the Cooler Master hexagon will also be illuminated on the front panel. A total of 6 fans can be mounted simultaneously, ensuring that even the most demanding builds can stay cool under heavy use.
|
|
Brushed Front Panel:
|
A brushed finish spans the entire front panel for an elegant and minimalistic design.
|
|
Mesh Intakes:
|
Large, mesh intakes span each side of the front panel to provide additional airflow to system.
|
|
Adaptable Drive Cage:
|
The drive cage is movable, able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
|
|
Versatile Cooling Options:
|
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
|
|
Product Name MasterBox MB400L w/o ODD MasterBox MB400L w/ ODD
|
|
Exterior Color Black
|
|
Materials Exterior Steel, Plastic
|
|
Left Side Panel Tempered Glass / Steel
|
|
Dimensions Incl. Protrusions 411 x 218 x 410mm (TG) 411 x 210 x 410mm (Steel)
|
|
Excl. Protrusions 396 x 210 x 400mm
|
|
Volume (Liters Excl. Protrusions) 33.26L
|
|
Motherboard Support Mini-ITX, Micro-ATX
|
|
Drive Bays 5.25" ODD N/A 1
|
|
3.5" HDD 2
|
|
3.5" / 2.5" Combo N/A
|
|
2.5” SSD 2
|
|
I/O Panel *may vary per region USB Ports (option 1) 2 x USB 3.2 Gen 1 (USB 3.0)
|
|
USB Ports (option 2) 1 x USB 3.2 Gen 1 (USB 3.0) 1 x USB 2.0
|
|
Included Accessories Audio In / Out 1 x 3.5mm Headset Jack (Audio + Mic)
|
|
Pre-installed Fan(s) *may vary per region Top N/A
|
|
Front N/A
|
|
Rear 1 x 120mm*
|
|
Fan Support Top 2 x 120mm 2 x 140mm 1 x 120mm 1 x 140mm
|
|
Front *mount behind the front plate 3 x 120mm 2 x 140mm 2 x 120mm 2 x 140mm
|
|
Rear 1 x 120mm
|
|
Radiator Support Top 120 / 240mm 120mm
|
|
Front 120 / 140 / 240 / 280mm 120 / 140 / 240 / 280mm (remove & reinstall ODD bracket to mount 280mm radiator)
|
|
Rear 120mm
|
|
Clearances CPU Cooler Steel:
|
167mm, TG: 166mm
|
|
Power Supply 325mm max (w/o front radiator & HDD cage) 140mm (HDD cage in backmost position)
|
|
Graphics Card 344mm
|
|
Cable Routing Behind MB Tray 18~22mm
|
|
Dust Filters Front, Top, Bottom
|
|
Power Supply Support Bottom Mount, ATX
|
|
Warranty 2 Years
|
