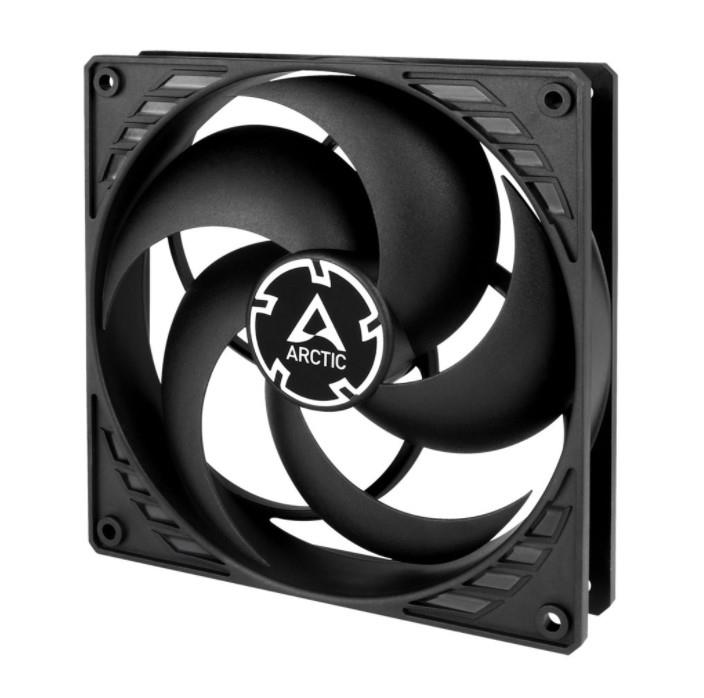

Skvělý větráček ARCTIC optimalizovaný pro statický tlak o rozměru 140 mm x 140mm s 200 – 1.700 RPM (řízenými PWM), průtok vzduchu:
|
72.8 CFM / 123.76 m3/h (@ 1.700 RPM), Hlučnost 0.3 Sone (@ 1.700 RPM), statický tlak: 2.4 mm H2O (@ 1.700 RPM)
|
|
Optimised for Static Pressure
|
|
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
|
|
More Efficient Technology
|
|
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
|
|
Maximum Quietness, Minimum Vibration
|
|
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
|
|
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
|
|
Extended Life Span
|
|
A 10 °C lower motor temperature roughly doubles the life span of a fan.
|
|
The new ARCTIC motor has a four times longer service life through its low coil temperature.
|
|
Consequently, we have extended the warranty to 10 years.
|
|
200 to 1700 RPM
|
|
regulated via PWM PST
|
|
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
|
|
High Quality Bearing
|
|
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
|
|
Performance
|
|
Fan:
|
140 mm, 200 – 1.700 RPM (Controlled by PWM)
|
|
Air Flow:
|
72.8 CFM / 123.76 m3/h (@ 1.700 RPM)
|
|
Noise Level:
|
0.3 Sone (@ 1.700 RPM)
|
|
Static Pressure:
|
2.4 mm H2O (@ 1.700 RPM)
|
|
Electrical Characteristics
|
|
Typical Voltage:
|
+ 12 V DC
|
|
Start-up Voltage:
|
3.9 V DC
|
|
Cable Length:
|
400 mm
|
|
Sub PST Cable Length:
|
50 mm
|
|
Voltage Current 12 V DC (Norminal) 0.12 A
|
|
Connection
|
|
Motherboard:
|
+ 12 V DC
|
|
PWM control signal
|
|
4-pin connector + 4-pin socket
|
